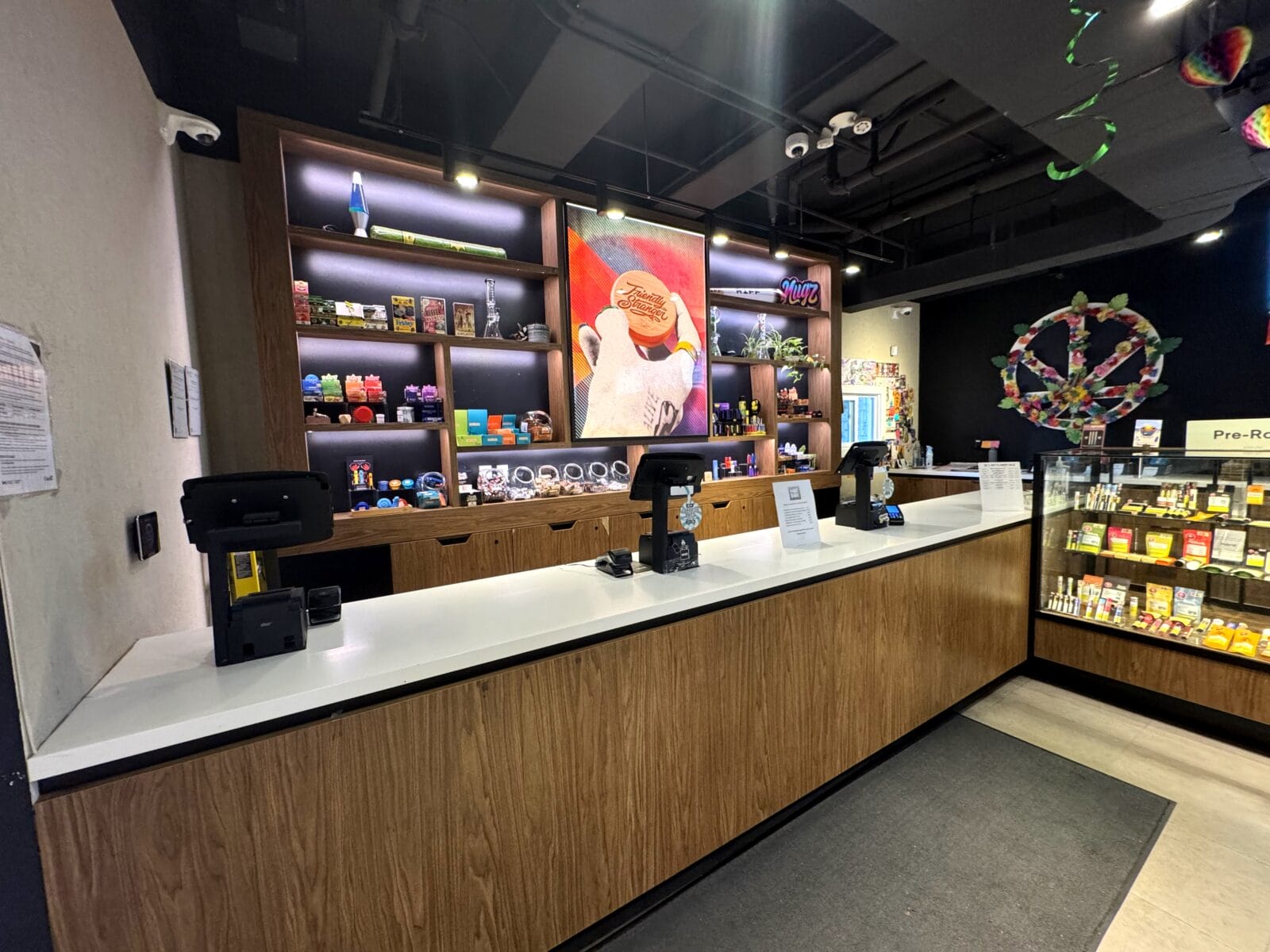

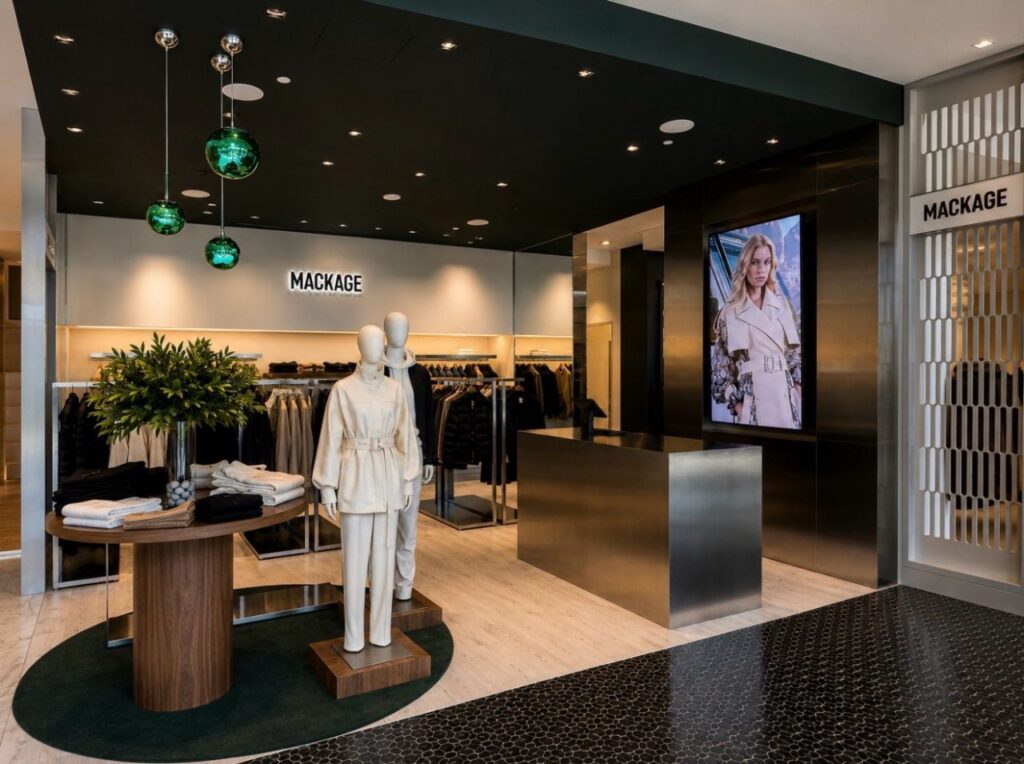

The cash wrap is where a store takes payment, and it affects queue times, security and how staff work all day. It handles payment, bagging, returns, online order pickup and often gift wrapping, while also carrying impulse merchandise and the brand’s most visible finishes. Most cash wrap problems come from designing the look first and the work second: a cash drawer that will not fit, a PIN pad cable with nowhere to go, no room for pickup orders, or an accessible counter added as an afterthought. Here is what to settle before the drawings go to a fixture manufacturer.
Write down how the counter will be used on a busy day. These answers set the size, the number of stations and the storage.
Standing transaction counters are commonly built between about 915 and 1,065 mm (36 to 42 in) high, with the exact height set by the POS equipment and the brand standard. Many cash wraps use two levels: a customer-side ledge or transaction top, and a lower staff work surface behind it that keeps screens and clutter out of view. Counter depth needs to fit the equipment and a bagging area without making staff reach too far to hand items across.
Behind the counter, leave enough aisle for staff to pass each other and for every drawer and door to open fully at the same time; as a rule of thumb, planners often allow about 1,000 to 1,200 mm (40 to 48 in) between the counter and the backwall. Check that the counter can be delivered through the store entrance and back-of-house route; large wraps are usually built in sections that join on site.
Ontario’s Design of Public Spaces Standards (section 80.41 of O. Reg. 191/11 under the AODA) apply when an obligated organization builds new service counters or replaces existing ones. That covers private businesses with at least one employee in Ontario, as well as public sector bodies. The requirements are:
Fixed queuing guides have their own requirements under section 80.42: enough width for mobility aids, room to turn where the line changes direction, and cane detectability. The Ontario Building Code and CSA B651 also apply, and the exact dimensions depend on the code edition and the permit, so take them from the architect or code consultant and show the accessible section clearly on the drawings. Payment terminals at the accessible counter should be reachable from a seated position, which usually means a swivel mount or a terminal on a cord.
The equipment list shapes the inside of a cash wrap more than the design does. Collect model numbers early for:
Then locate power and data. If the cash wrap sits in the middle of the floor, its position has to match the floor boxes, core drills or poke-through fittings, and that position is fixed long before the fixture arrives. Show the conduit entry points on the shop drawings relative to the cash wrap’s base, and plan grommets, cable trays and a continuous cable path between sections, so wiring runs end to end without drilling on site and equipment can be swapped without taking the counter apart. Equipment generates heat, so closed cabinets holding printers, routers or UPS units need vent grilles or a small fan.
Agree early who does what: the fixture manufacturer builds the counter with its cut-outs and cable paths, the electrical contractor brings power and data to it, and the POS or IT vendor usually supplies, cables and installs the equipment.
The cash wrap takes more wear than any other fixture. The transaction top sees bags, keys, coins and boxes sliding across it all day, and the base gets kicked by customers and hit by carts and floor machines.
Brands opening many stores usually standardize the cash wrap as a set of modules, such as a POS module, a bagging module and an end module, that can be combined to suit different store sizes. Standard modules keep equipment cut-outs, power entry points and finishes the same everywhere, which simplifies ordering, installation and service. A first article of the cash wrap, built with the real equipment, is the most reliable way to catch fit problems before production. See rollout programs for how multi-store fixture work is planned.
We build cash wraps and other store fixtures in our Vaughan plant, including solid surface tops and provisions for integrated lighting, and we work with partners for quartz, metal and glass. Our drafting team issues shop drawings for review before production, and the equipment list and accessible counter details are confirmed there. For multi-store programs we stage and kit fixtures store by store. Send us your plan and equipment list to start.
Standing transaction counters are commonly about 915 to 1,065 mm (36 to 42 in) high, set by the POS equipment and the brand standard. In Ontario, new or replaced service counters also need an accessible section with a countertop height usable by a person seated in a mobility aid, so take those dimensions from the architect or code consultant.
Under section 80.41 of O. Reg. 191/11, where a single queuing line serves one or more counters, each of those counters must accommodate a mobility aid. Where there are multiple lines and counters, at least one accessible counter is needed for each type of service, identified with signage.
Space for the cash drawer and POS equipment, bag storage near the bagging area, shelves for online pickup orders, a place for returns, locked storage, ventilated space for network equipment, and waste and recycling. Collect equipment model numbers early so cut-outs and shelves fit.
Solid surface, quartz and high-pressure laminate are all common. Solid surface is repairable and allows integrated edges, quartz is very hard and stain resistant, and laminate is the most economical. The edges and base matter as much as the top, because they take most of the impact.
Standard modules can be combined to suit different store sizes while keeping equipment cut-outs, power entry points and finishes the same, which simplifies ordering, installation and service across many stores.
