Millwork for a Veterinary Clinic That Does Not Read Like One: Juno Veterinary, Queen Street East

August 20, 2026 Case Studies Comments (0)

A veterinary clinic is one of the harder millwork briefs in commercial work, and the reason is a contradiction. Everything has to survive disinfectant, claws, water and a wash-down routine that runs every single day — and none of it is allowed to look like it does.

Juno Veterinary’s Queen Street East clinic in Toronto sets that problem out plainly. The waiting room reads like a hospitality fit-out. The treatment room behind it is a working clinical space. DNS Industries Limited manufactured the architectural millwork and casework for both, in the same maple veneer, to the same standard.

Curves are where a millwork package is judged

Flat casework is a solved problem. Any competent shop can deliver a run of boxes with consistent reveals. What separates packages is what happens when the drawings stop being rectangular.

The waiting area is a row of arched niches, each one a full-height radius in maple with a banquette set into it. An arch is unforgiving: the radius has to be identical from bay to bay, the return has to hold its profile all the way round, and the veneer has to carry through the curve without a visible break. Line four of them up on one wall and every inaccuracy becomes a comparison.

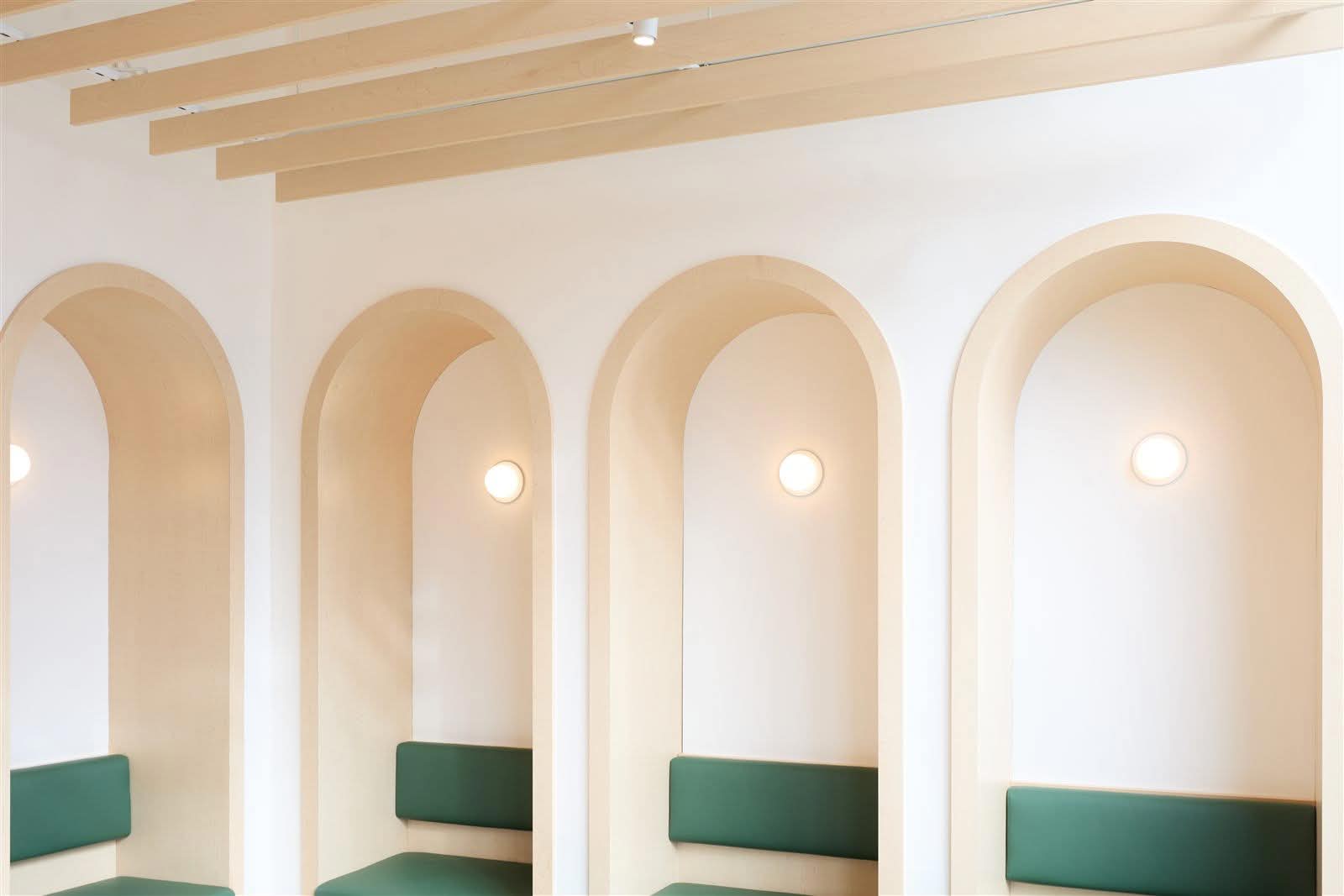

Four arched maple niches with green upholstered banquette seating in the Juno Veterinary waiting area — Four bays, one radius. The arches repeat down the wall, which is exactly why any variation between them would be obvious.

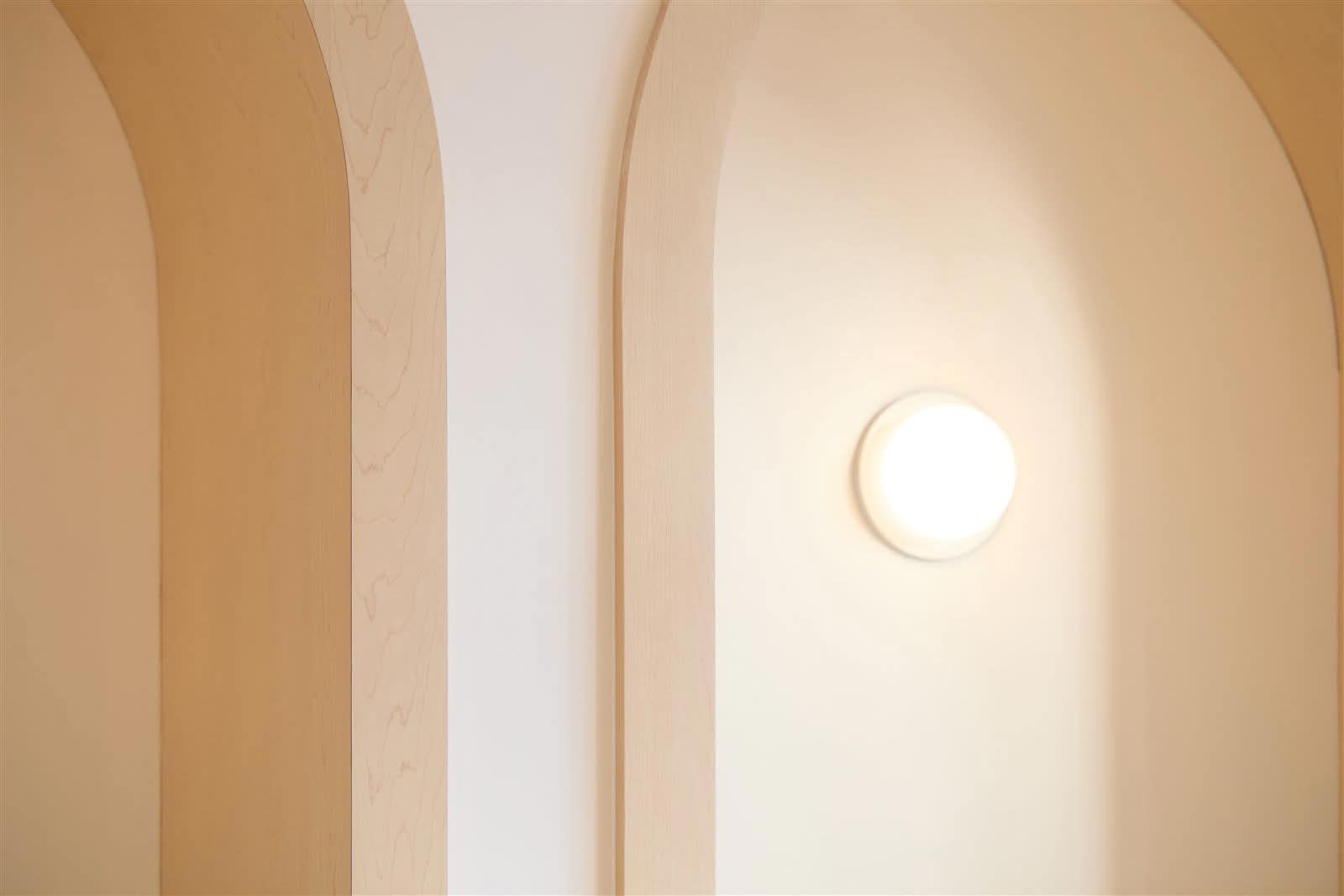

Close detail of a curved maple arch return and round wall light in the Juno Veterinary waiting area — The return is the part that gets looked at from three feet away while somebody waits. It holds its profile through the full radius.

A slat wall is a tolerance test in public

The vertical maple slat wall is the other element that cannot hide. Every slat is visible along its whole length, the gaps between them read as a rhythm, and the eye picks up a variation of a millimetre or two instantly because it has forty neighbours to compare against.

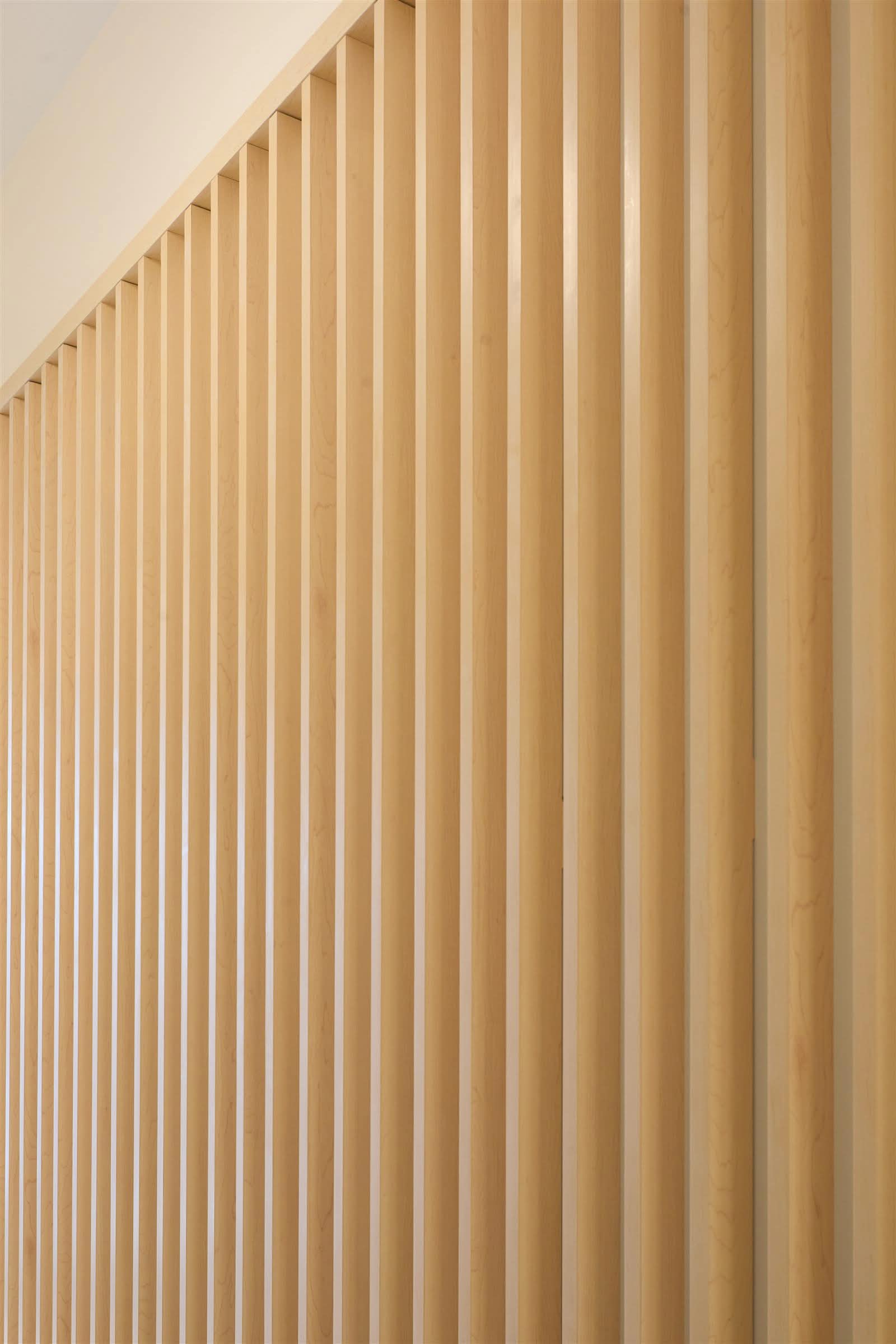

Vertical maple slat wall built as a feature partition at Juno Veterinary — Consistent spacing across the full height. Nothing about a slat wall is forgiving, which is why it is worth showing.

The exam room is a module, not a room

Front of house is where a clinic is judged by clients. The exam rooms are where it is judged by the people who work there every day.

Each room takes the same arrangement — wall cabinet, base cabinet, solid surface counter, a scale set into the run at floor level — and repeats it. That repetition is the point. A vet moving between rooms should find the drawer in the same place every time, and the only way that happens is if the casework is manufactured as a module rather than as a series of one-off rooms.

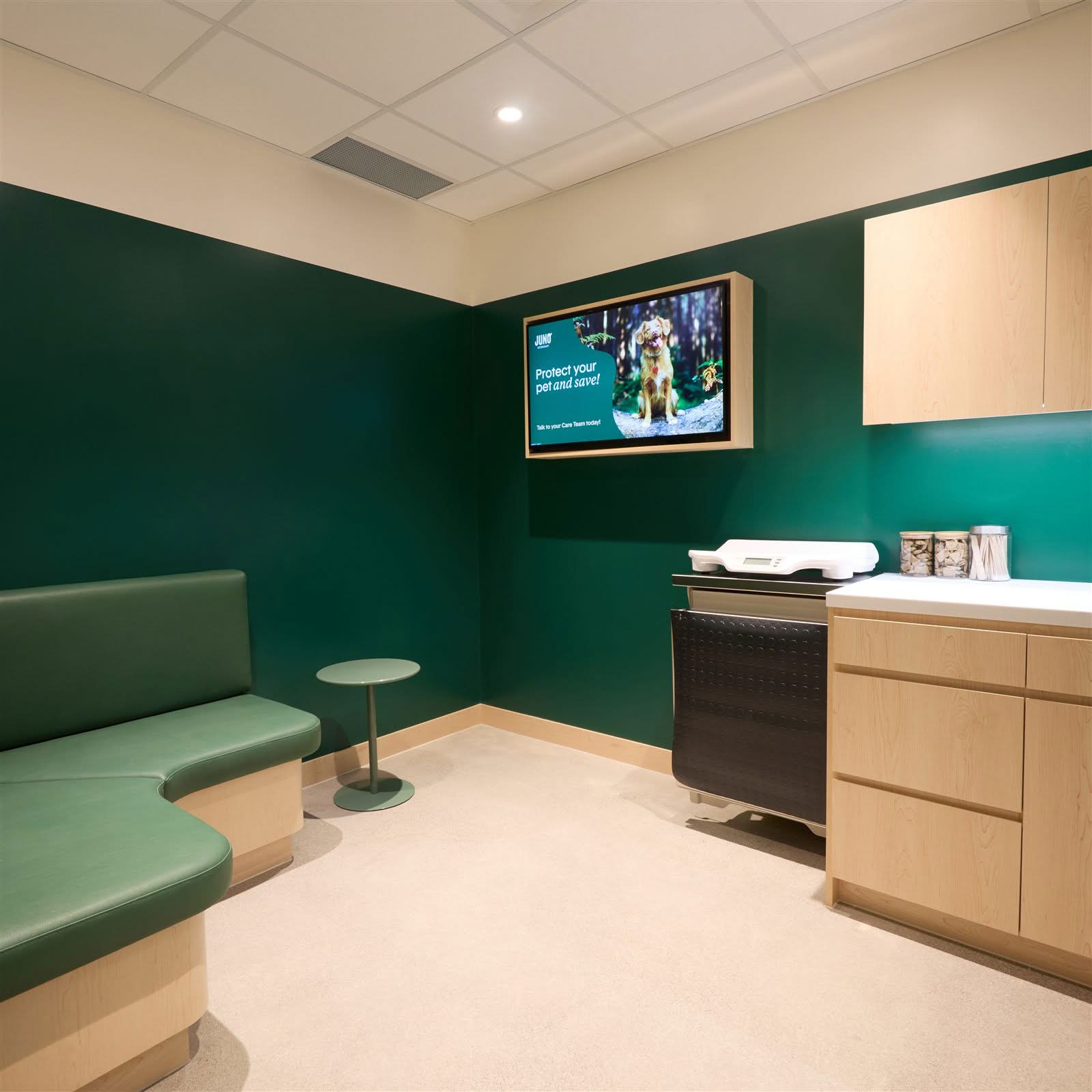

Juno Veterinary exam room with maple wall and base cabinets, a white solid surface counter and an integrated pet scale — The same maple and solid surface as the waiting room, doing a completely different job. The scale is integrated into the counter run rather than parked beside it.

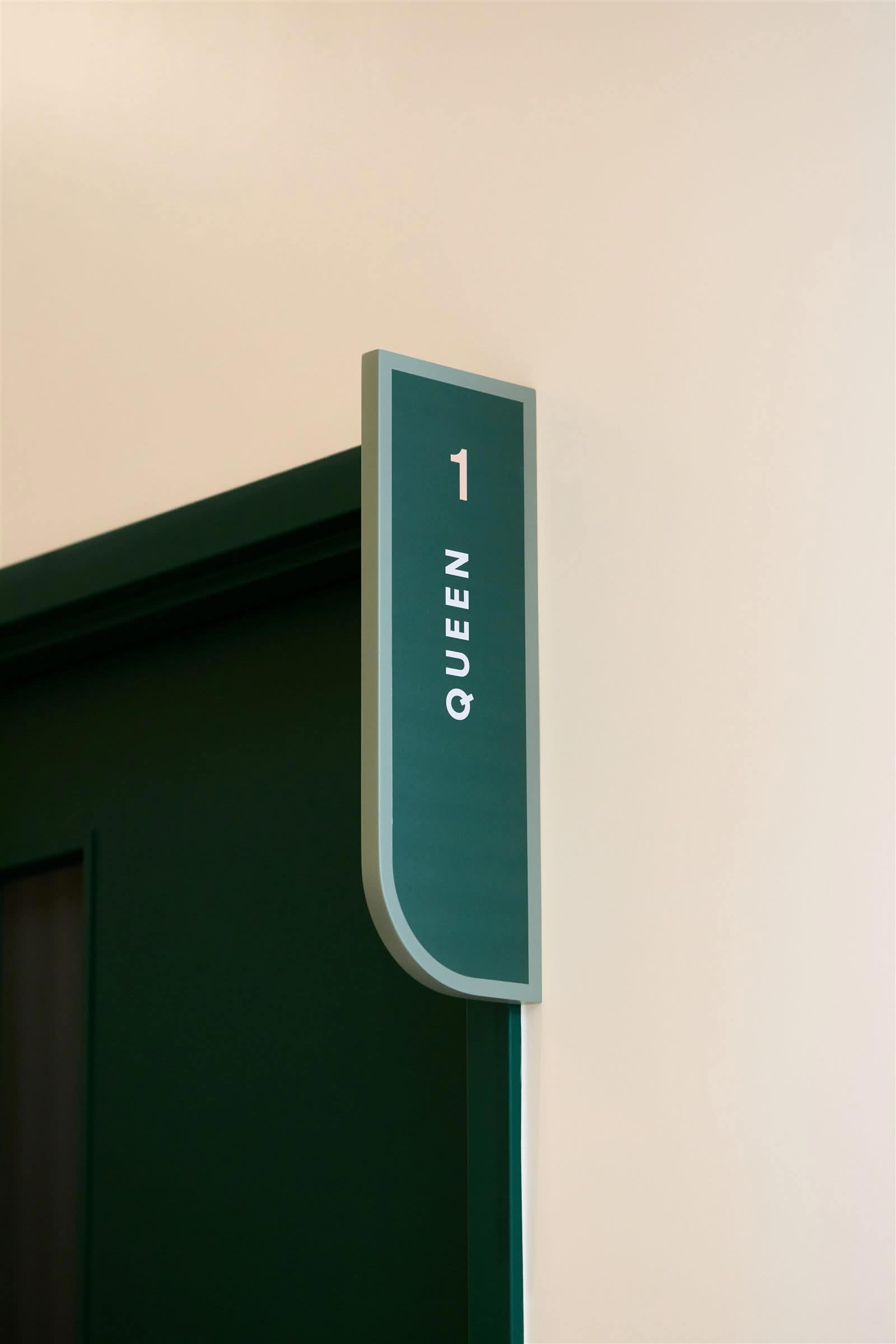

Green wayfinding blade sign marking exam room Queen 1 at Juno Veterinary — Rooms are named and numbered. Behind each door the casework module is the same one.

Back of house has no margin for a rough edge

The treatment area is the part clients rarely see and the part that takes the most punishment. The island is maple with a solid surface top; the counter runs carry stainless prep tables set flush into them.

That junction — solid surface meeting stainless, on a surface that gets flooded and disinfected daily — is where a clinical millwork package either holds up for a decade or starts lifting at the seams in year two. It is a coordination problem as much as a fabrication one: the equipment is somebody else’s supply, and the millwork has to be built to receive it.

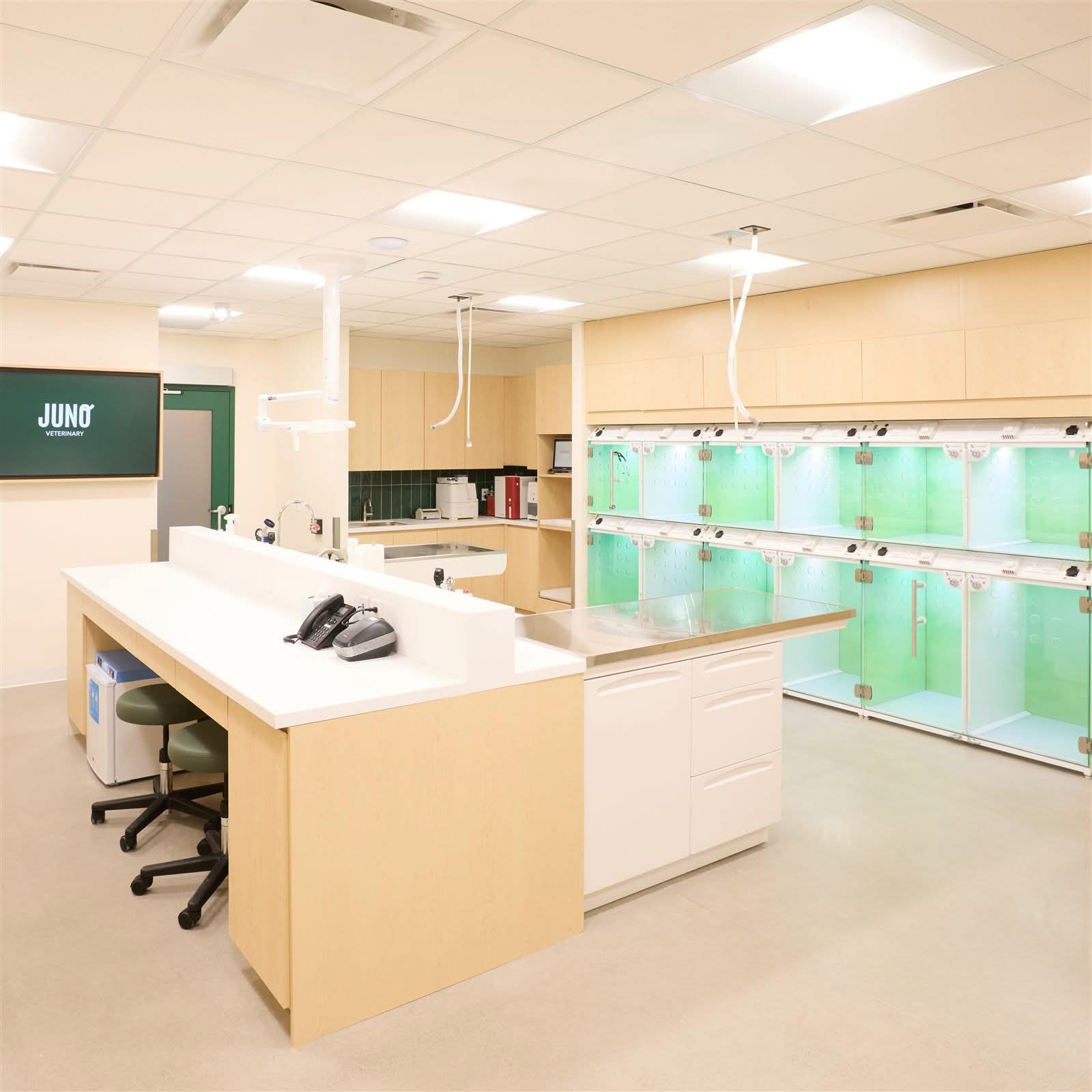

Treatment room at Juno Veterinary with a maple and solid surface island and a glass fronted kennel bank behind — The treatment island. The kennel bank behind it is specialist veterinary equipment — the millwork is built around it and has to leave it exactly the clearance it needs.

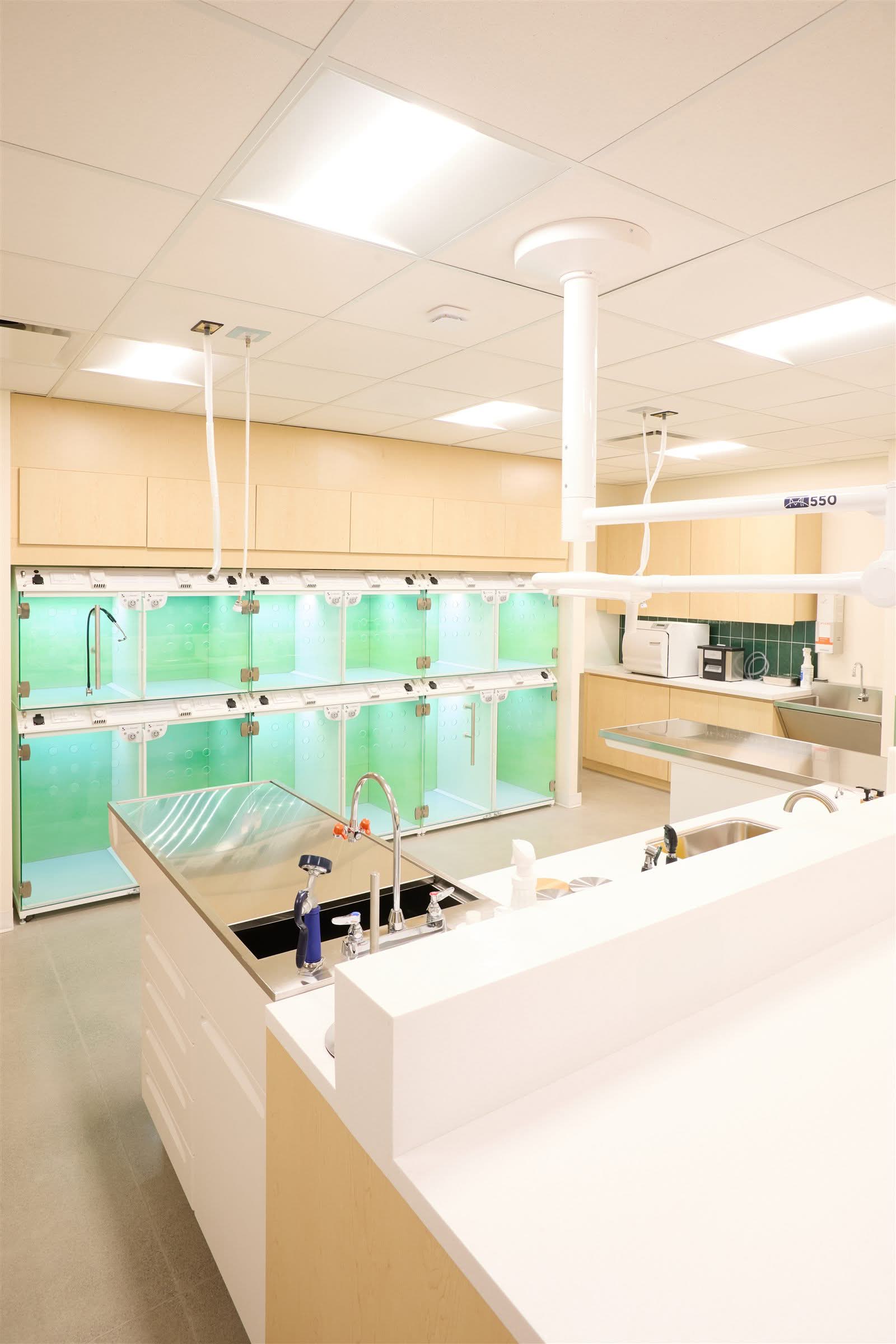

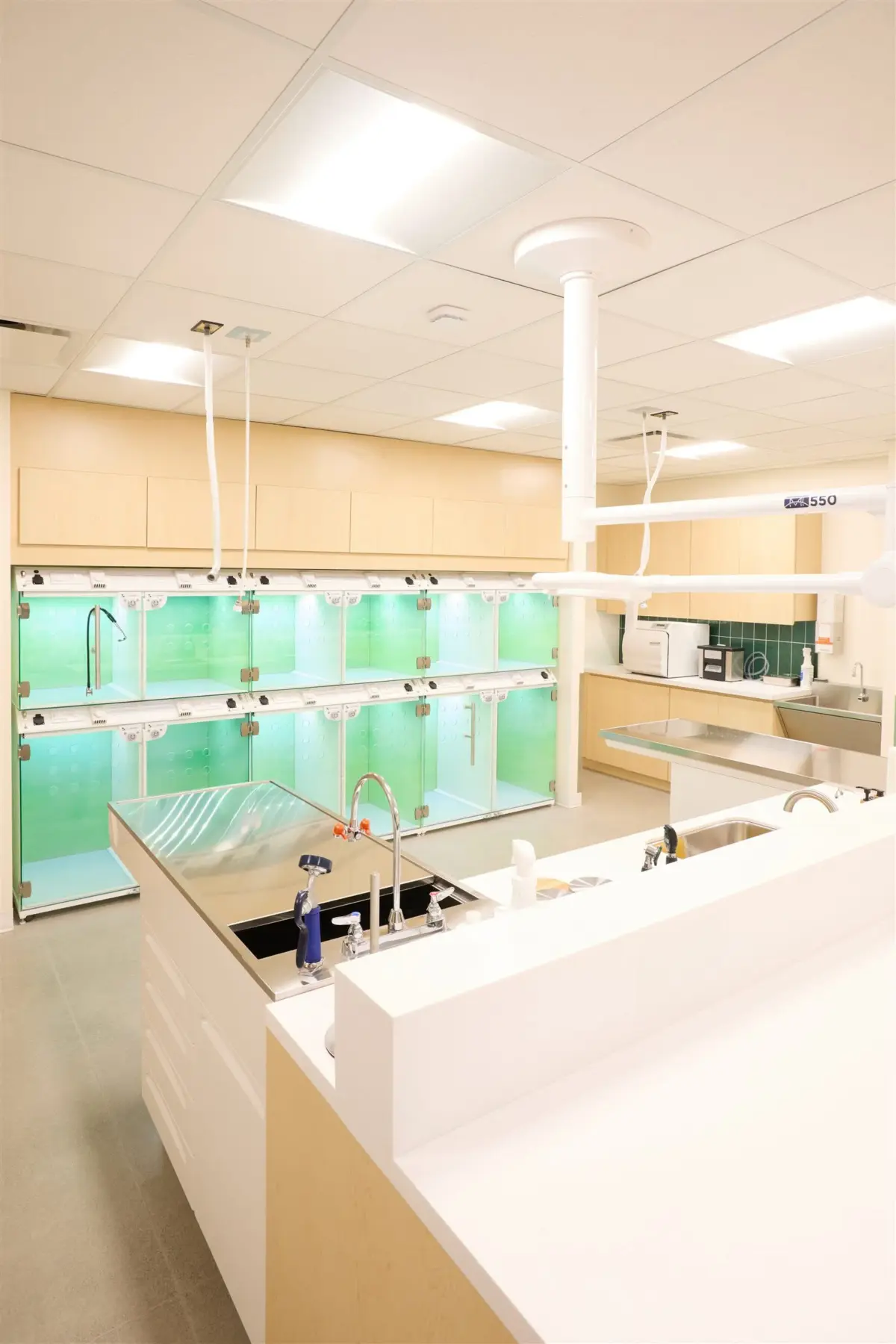

Stainless steel prep table set into a solid surface counter run in the Juno Veterinary treatment area — Stainless set into solid surface. Daily wash-down means this joint is the detail that decides how the room ages.

Why this one is worth showing

Veterinary is a growing category of commercial fit-out, and it is being briefed the way retail and hospitality are briefed: a brand standard, a rollout, and a fixed opening date. What makes it harder than retail is that the same package has to satisfy an infection-control standard and a design intent in the same drawing.

For general contractors, architects and designers, that is the useful read here. The front-of-house radius work and the back-of-house wet detailing came out of one shop, in one package, on one set of drawings. Splitting that scope between a joinery shop and a clinical-equipment supplier is where the coordination gaps — and the site delays — usually appear.

Project facts

Client: Juno Veterinary
Location: Queen Street East, Toronto, Ontario
Sector: Veterinary and clinical fit-out
DNS scope: architectural millwork and casework — reception desk, arched banquette niches, maple slat feature wall, exam room casework modules, treatment room island and counter runs
Principal materials: maple veneer, solid surface counters
Manufactured at: 967 Edgeley Blvd, Vaughan, Ontario

DNS Industries Limited manufactures architectural millwork, casework and retail fixtures for general contractors, architects and design firms across North America. If you are pricing a clinical or veterinary package, get in touch.
